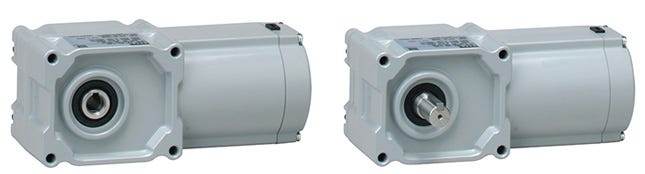

Concentric Right Angle Hollow Bore / Concentric Right Angle Shaft (F2) (15W-90W)
Features
High efficiency/Low noise
The high-ratio hypoid gear realizes high efficiency, low noise, and long service life by eliminating distortion caused by heat treatment by CBN grinding after heat treatment
Free installation
- Symmetrical and concentric double-flange mount type without protrusion of the motor from the flange side (symmetrical with the motor as the center X=X1, Y=Y1)
- With a mounting hole tap for face mount
Motor Power and Reduction Ratio
| Motor Power | Reduction Ratio | |
|---|---|---|
| 3-Phase | 1-Phase | |
| 15W | 15W | 10 to 240 |
| 25W | 25W | 10 to 240 |
| 40W | 40W | 10 to 240 |
| 60W | 60W | 10 to 240 |
| 90W | 90W | 10 to 240 |
Model composition
- Gearmotor
- Gearmotor with brake
- Water-proof (IP65) gearmotor
- Water-proof (IP65) gearmotor with brake
- Speed control gearmotor
