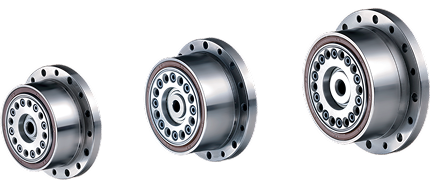

High Stiffness Reducer DGS type
3Frame Sizes
OD: 73mm / 79mm / 93mm
6stage Reduction
1/19・1/29・1/49・1/79・1/99・1/119
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.
Features
Achieves high precision positioning. High torque, a wide range of reduction ratios, and high stiffness for resistance to impacts.
A compact and flexible design is possible.
High torque and wide range of reduction ratios
The Best choice for Robots and FA equipment. (other products in need of high-accuracy)
Introducing the high stiffness reducer DGS type demo machine
Structure
[Structure] High torque, a wide range of reduction ratios, and high stiffness for resistance to impacts.
Type Codes
| ①Model name | DG Series |
|---|---|
| ②Type | S: Solid |
| ③Frame Size* | 010：11N・m |
| 030：31N・ｍ | |
| 050：52N・m | |
| ④Reduction ratio | 019：1/19 |
| 029：1/29 | |
| 049：1/49 | |
| 079：1/79 | |
| 099：1/99 | |
| 119:1/119* | |
| ⑤Special code | For special specifications, additional identification symbols will be used. |
* Each Frame Size represents their corresponding Rated Torque
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.
Selection Process
The high stiffness reducer can be selected as follows. Download the catalog for details.
1
Calculation of average load torque on output shaft side in terms of usage
2
-1
Calculation of average output RPM
2
-2
Deciding on reduction ratio
2
-3
Calculation of average input RPM
2
-4
Calculation of maximum input RPM
3
Confirmation of whether the usage conditions meet the Performance Table values
4
Calculation of reducer Life time
CAD data
CAD data for High Stiffness Reducers can be downloaded from the Selection Tools.
CAD Data Download Procedure
On page "Filter Search", select the Solid/Hollow Bore/Flat Type（DGS/DGH/DGF）.
Select the narrowing criterias in the middle section and you can download the CAD data for the model displayed in the bottom section.
