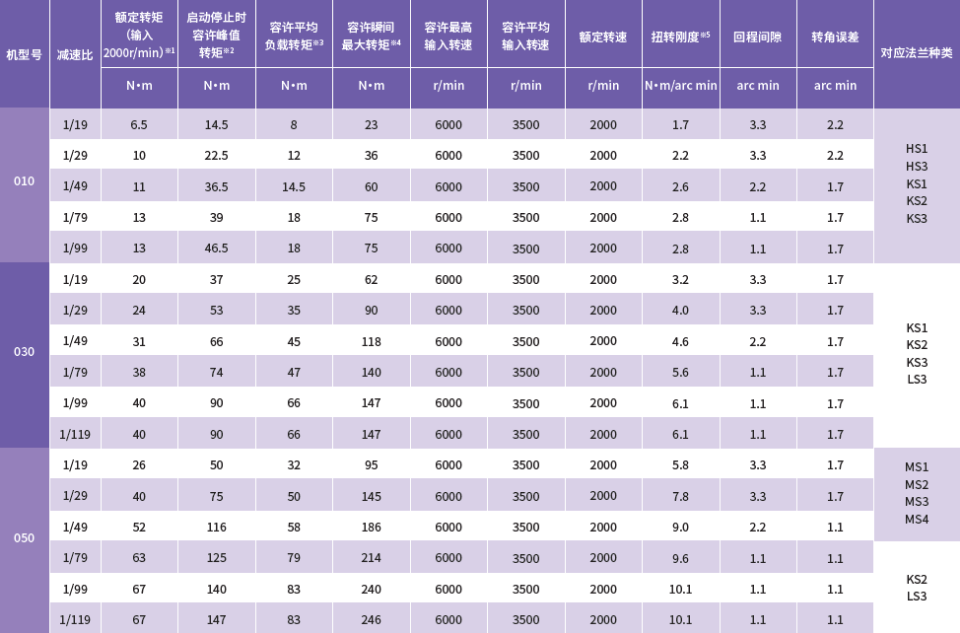

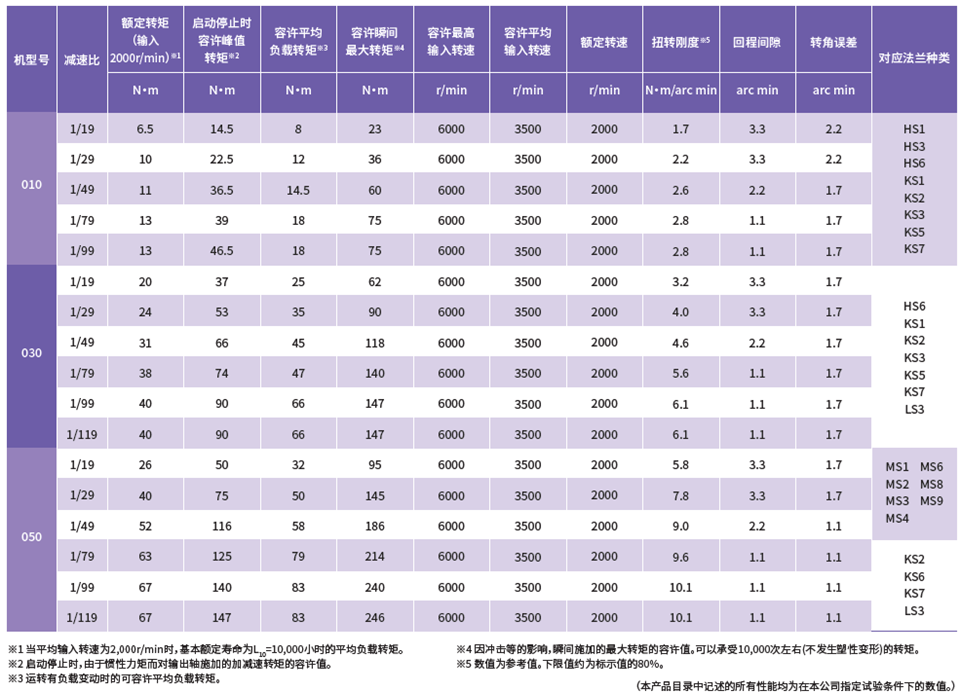

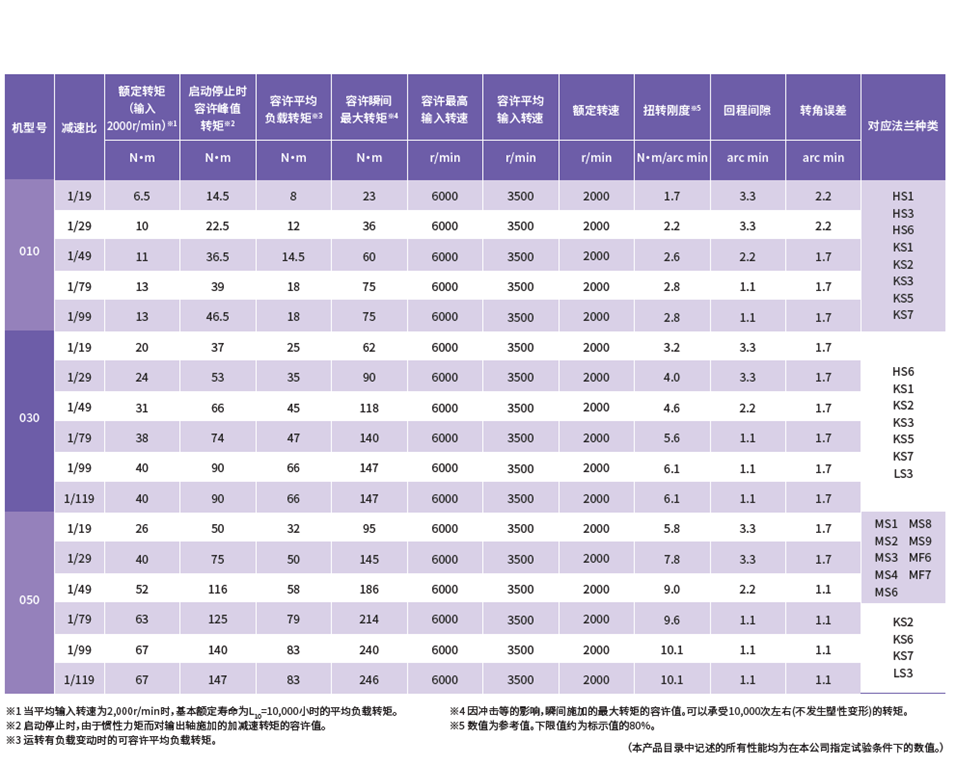

性能表

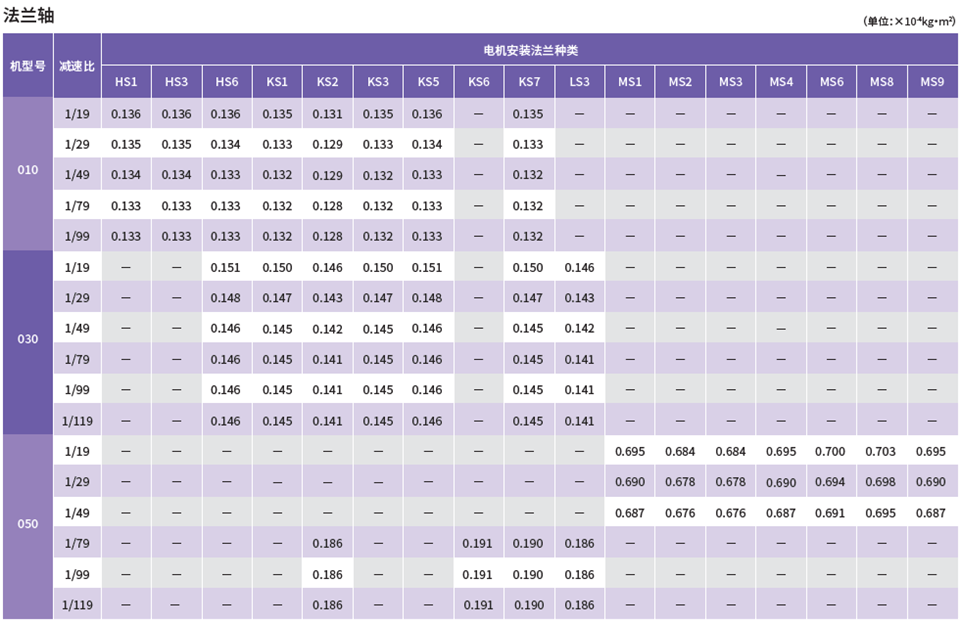

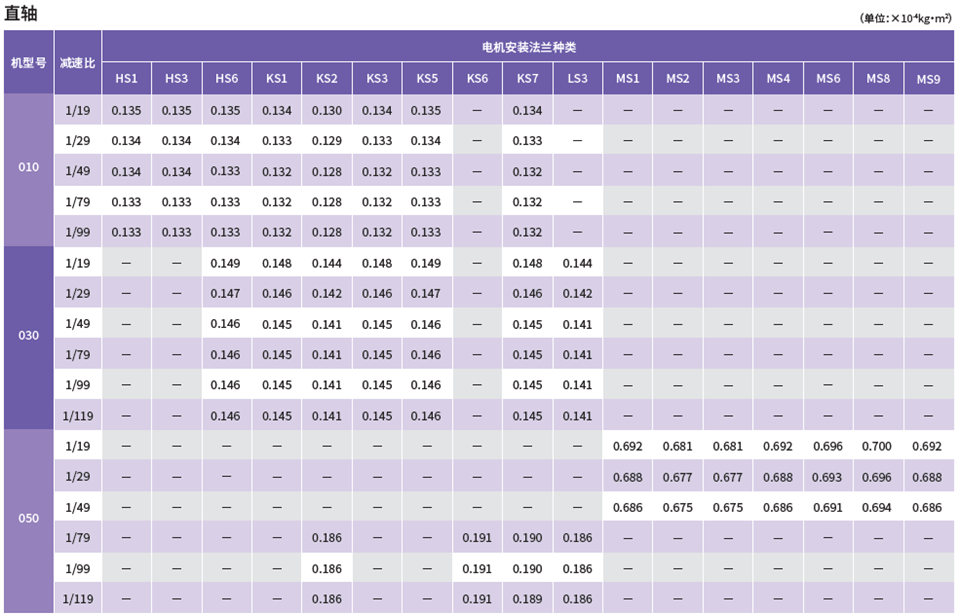

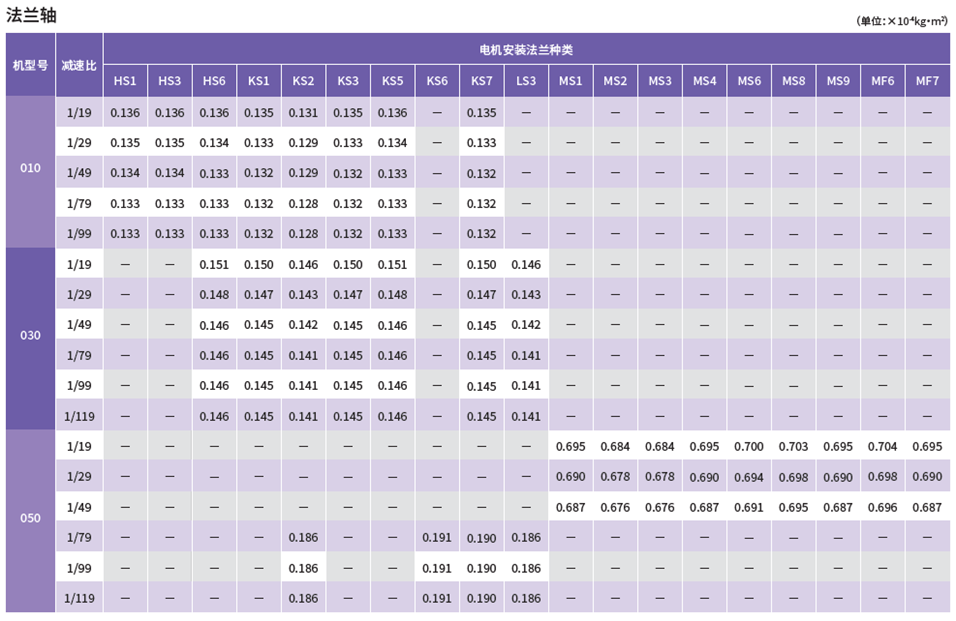

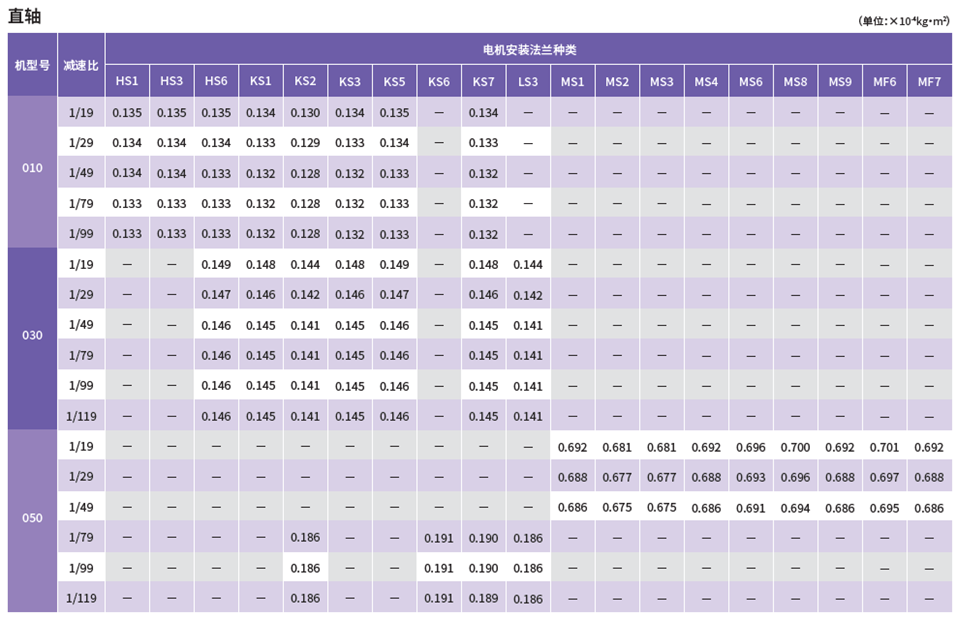

惯性力矩（输入轴换算）
（单位：×10-4kg・m2）
尺寸图

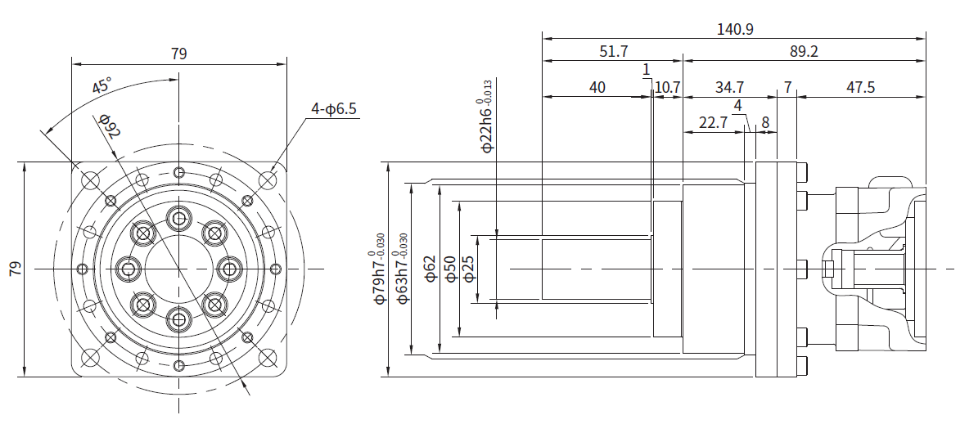

DGS030F

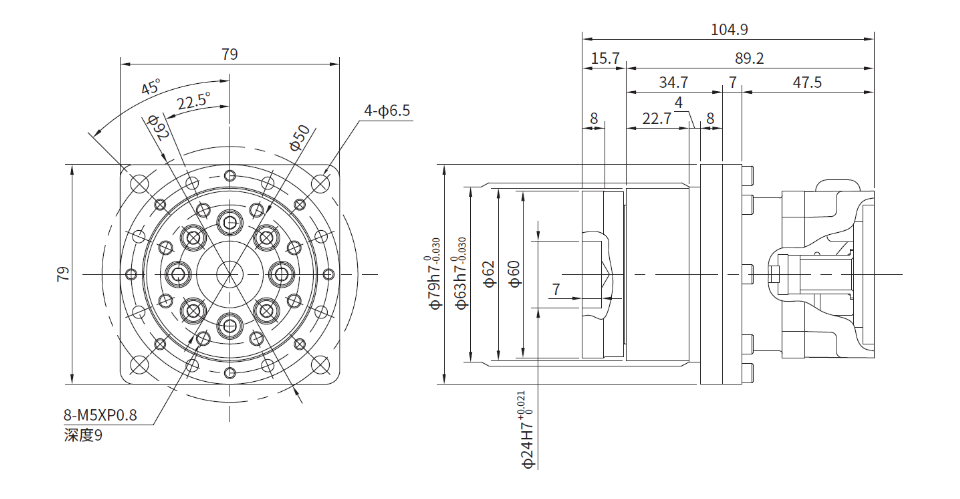

DGS030J
※其他型号的外形尺寸请参阅产品目录。

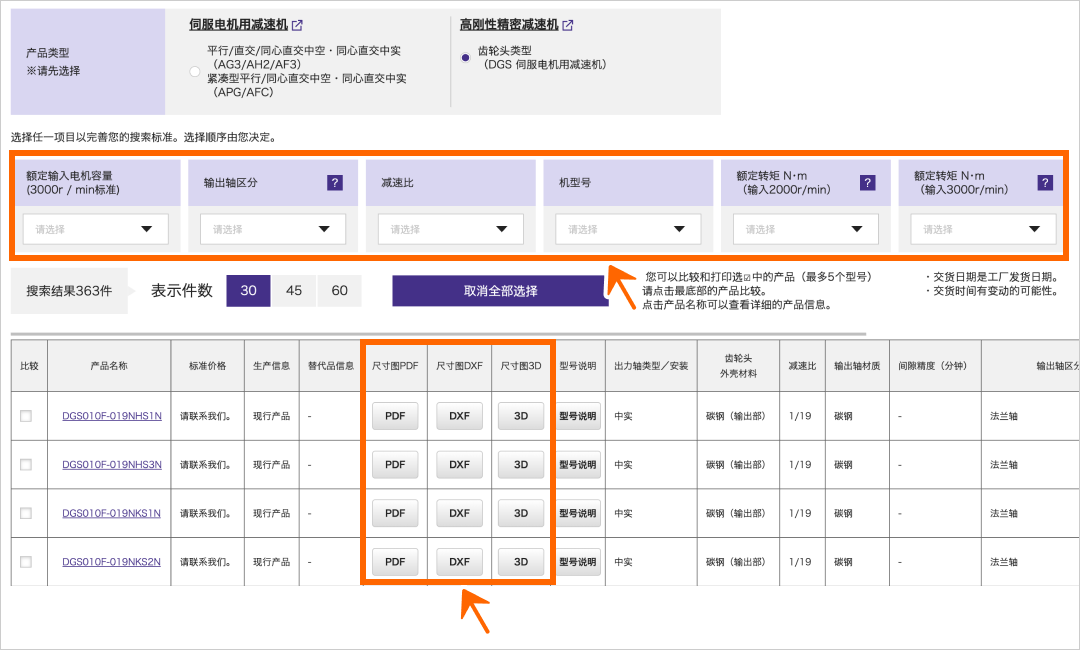

CAD数据
机型号010
| 输出轴区分 | 电机安装 法兰种类 | 选购件 | 2D（PDF） | 2D（DXF） | 3D（STEP） |
|---|---|---|---|---|---|
| F:法兰轴 | HS1 | DXF | 3D | ||
| HS3 | DXF | 3D | |||
| HS6 | DXF | 3D | |||
| KS1 | DXF | 3D | |||
| KS2 | DXF | 3D | |||
| KS3 | DXF | 3D | |||
| KS5 | DXF | 3D | |||
| KS7 | DXF | 3D | |||
| J:直轴 | HS1 | DXF | 3D | ||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| HS3 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| HS6 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| KS1 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| KS2 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| KS3 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| KS5 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D | |||
| KS7 | DXF | 3D | |||
| U1（带平键槽・轴端螺纹） | DXF | 3D |
