The structure is simple and the case is made of aluminum die-casting
A spiral bevel gear made by carburizing and quenching special steel is used
This can be installed in any directions
High grade cast iron is used for the case and a taper roller bearing is used for the bearing
A spiral bevel gear made by carburizing and quenching special steel is used
This can be installed in any directions by selecting the shaft arrangement
Note) Additional machining of the oil plug PT1/4 (oil drain port) is required depending on the installation
Type | Output Shaft Diameter | Reduction Ratio | Lubrication |
---|---|---|---|
1. KB/KC | 10, 15, 20 | 1/1, 1/2 | Grease filling |

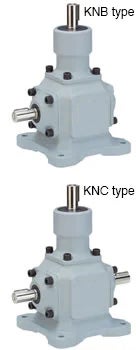

2. KNB/KNC | 19, 25, 32, 40 | 1/1, 1/2 | Grease filling |
