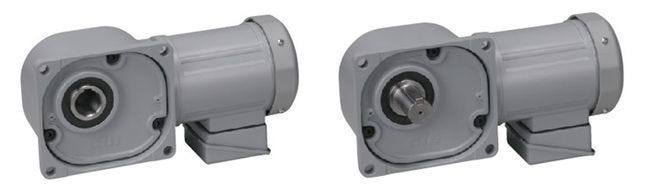

Right Angle Hollow Bore / Right Angle Shaft (F) (0.1kW-2.2kW)
Features
High efficiency/Low noise
The high-ratio hypoid gear realizes high efficiency, low noise, and long service life by eliminating distortion caused by heat treatment by CBN grinding after heat treatment
Inverter set service
Combined sale of the J1000 inverter made by YASKAWA Electric Corporation
The inverter is shipped with the parameters set in accordance with the gearmotor, so it can be used right out of the box
Motor Power and Reduction Ratio
| Motor Power | Reduction Ratio | ||
|---|---|---|---|
| 3-Phase | 1-Phase | Right Angle Hollow Bore (FS) | Right Angle Shaft (FF) |
| 0.1kW | 100W | 10 to 1500 | 10 to 240 |
| 0.2kW | 200W | 5 to 1500 | 5 to 240 |
| 0.4kW | 400W | 5 to 1500 | 5 to 240 |
| 0.75kW | – | 5 to 450 | 5 to 240 |
| 1.5kW | – | 5 to 240 | – |
| 2.2kW | – | 5 to 120 | – |
Model composition
- Gearmotor
- Gearmotor with brake
- Water-proof/Outdoor (IP65) gearmotor
- Water-proof/Outdoor (IP65) gearmotor with brake
- Reducer (double-shaft type)
- S-Type Reducers (compatible with the specified motor)
The model with a motor capacity of 0.75kW-2.2kW is the high-efficiency IE3 gearmotor.
