Parallel Shaft (G3)(0.1kW-2.2kW)
Features
Low noise
- The built-in gear (helical gear) realizes low noise by high precision machining and carburizing and quenching using special steel
- Proprietary special brake structure and low-noise brake adopting the laminated damping steel sheet armature

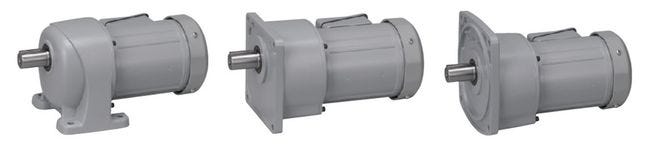

You can select from three installation types
- Leg mount type fixed to the base such as the floor
- Flange mount type which can be installed to the device directly
- Small flange mount type with a small flange area
Inverter set service
Combined sale of the J1000 inverter made by YASKAWA Electric Corporation
The inverter is shipped with the parameters set in accordance with the gearmotor, so it can be used right out of the box
Motor Power and Reduction Ratio
| Motor Power | Reduction Ratio | |
|---|---|---|
| 3-Phase | 1-Phase | |
| 0.1kW | 100W | 5 to 1200 |
| 0.2kW | 200W | 5 to 1200 |
| 0.4kW | 400W | 5 to 1200 |
| 0.75kW | – | 5 to 450 |
| 1.5kW | – | 5 to 200 |
| 2.2kW | – | 5 to 100 |
Model composition
- Gearmotor
- Gearmotor with brake
- Water-proof/Outdoor (IP65) gearmotor
- Water-proof/Outdoor (IP65) gearmotor with brake
- Gearmotor with a clutch/brake (standard type/reinforced type)
- Reducer (double-shaft type)
- S-Type Reducers (compatible with the specified motor)
The model with a motor capacity of 0.75kw-2.2kw is the high-efficiency IE3 gearmotor.
