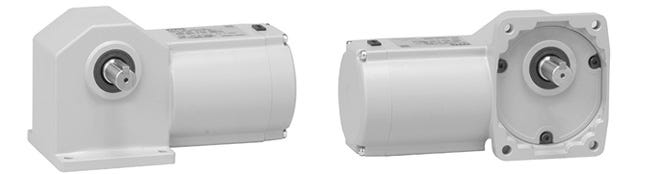

Right Angle Shaft (H) (15W-90W)
Features
High efficiency/Low noise
The high-ratio hypoid gear realizes high efficiency, low noise, and long service life by eliminating distortion caused by heat treatment by CBN grinding after heat treatment
Wide variation
- High reduction ratios up to 1/1800 are standardized
- Leg mount is standardized
Motor Power and Reduction Ratio
| Motor Power | Reduction ratio | |
|---|---|---|
| 3-Phase | 1-Phase | |
| 15W | 15W | 10 to 1800 |
| 25W | 25W | 10 to 1800 |
| 40W | 40W | 10 to 1800 |
| 60W | 60W | 10 to 1800 |
| 90W | 90W | 10 to 1800 |
Model composition
- Gearmotor
- Gearmotor with brake
- Water-proof (IP65) gearmotor
- Water-proof (IP65) gearmotor with brake
- Speed control gearmotor
