Product information
Compact but can achieve high precision with powerful drive

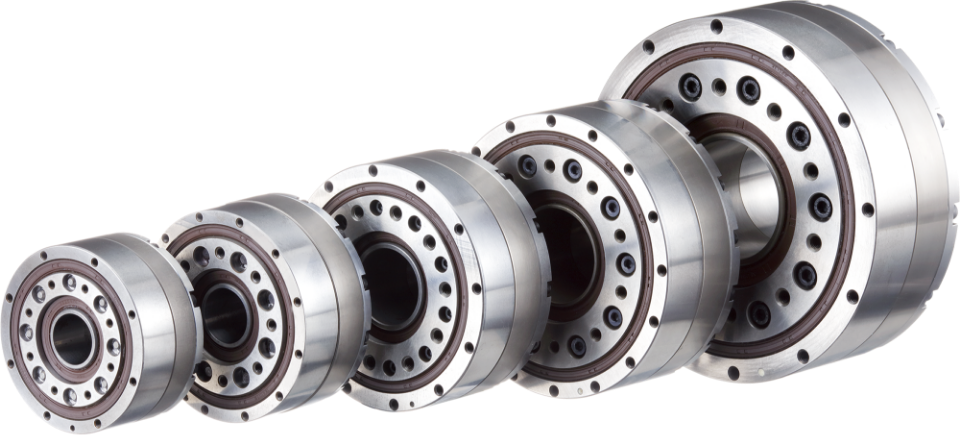

5 Frame Sizes
OD: 71mm /81mm /95mm /110mm /142mm
3 stage Reduction
1/19, 1/29, 1/59
Proposal of Customized Specifications
Reducer for Magazines
Usable in magazine drive parts for #30 Machining Center
Actuator Drive Unit（Example of Collaboration with a Motor Manufacturer）
Achieved unitization with a hollow DD motor.
This device can provide hollow structure at the center of rotation.
Usable for driving turntables and more

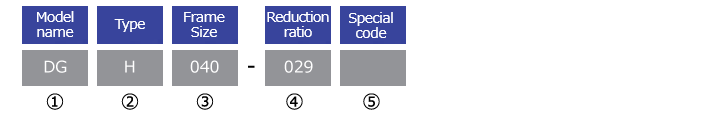

Model
| ① Model name | DG Series |
|---|---|
| ② Type | H: Large Hollow Shaft |
| ③ Frame Size* | 010:10N·m |
| 030:29N·m | |
| 040:44N·m | |
| 080:82N·m | |
| 150:153N·m | |
| ④ Reduction ratio | 019:1/19 |
| 029:1/29 | |
| 059:1/59 | |
| ⑤ Special code | For special specifications, additional identification symbols will be used. |
* Each Frame Size represents their corresponding Rated Torque
Selection Process
The high stiffness reducer can be selected as follows. Download the catalog for details.
1
Calculation of average load torque on output shaft side in terms of usage
2
-1
Calculation of average output RPM
2
-2
Deciding on reduction ratio
2
-3
Calculation of average input RPM
2
-4
Calculation of maximum input RPM
3
Confirmation of whether the usage conditions meet the Performance Table values
4
Calculation of reducer Life time
