Product information
Flat and lightweight with input bearing inside

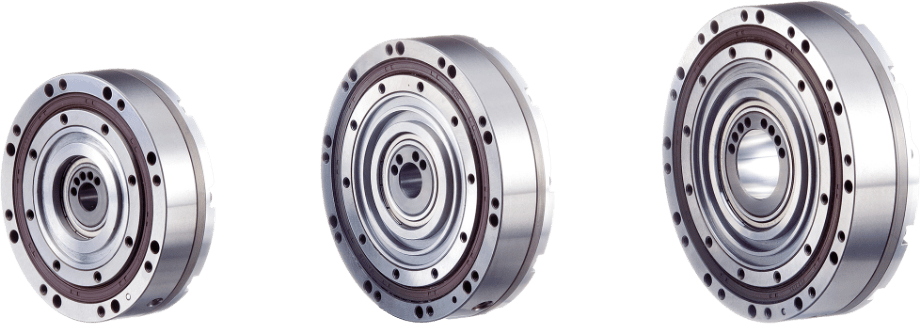

3Frame Sizes
OD: 71.5mm /81.5mm /91.5mm
2 stage Reduction
1/50, 1/100

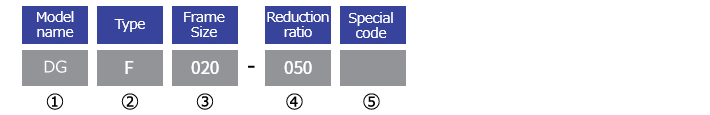

Model
| ①Model name | DG Series |
|---|---|
| ②Type | F：Flat |
| ③Frame Size* | 005：5.4N·m |
| 020：16N·m | |
| 030：28N·m | |
| ④Reduction ratio | 050：1/50 |
| 100：1/100 | |
| ⑤Special code | For special specifications, additional identification symbols will be used. |
* Each Frame Size represents their corresponding Rated Torque
Selection Process
The high stiffness reducer can be selected as follows. Download the catalog for details.
1
Calculation of average load torque on output shaft side in terms of usage
2
-1
Calculation of average output RPM
2
-2
Deciding on reduction ratio
2
-3
Calculation of average input RPM
2
-4
Calculation of maximum input RPM
3
Confirmation of whether the usage conditions meet the Performance Table values
4
Calculation of reducer Life time
PDF catalog
Click the cover to go to the download page.
Note that your personal information will be required.
Contact us
Feel free to contact us for any questions about the selection method or specification structure.
Contact
Contact
Nissei Corporation Sales Planning department. Oversea sales sect.
TEL: 0566-92-5312
FAX: 0566-92-7002
E-mail：oversea@nissei-gtr.co.jp
