Low Backlash Specification (AG3,AH2,AF3)

Low Backlash Specification  (AG3,AH2,AF3)

Features

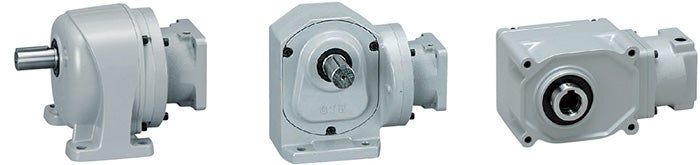

The shape of the gear head is the same as that of the induction motor

This is compatible with the induction motor, brushless, and reducer for servo-motor + servo-motor.

High precision

The backlash precision is 1 minute/3 minutes.

This is compatible with various servos

【Examples of servo motor manufacturers in Japan】

Manufacturer Compatible type
Sanyo Denki R series, etc.
OMRON 1S series, R88M-1,etc.
KEYENCE SV2 series,etc.
Panasonic MINAS A7 series,etc.
FANUC αi-B,etc.
Mitsubishi Electric HK series,etc.
YASKAWA Electric Σ-X series,etc.

【Examples of servo motor manufacturers other than Japan】

Manufacturer Compatible type
Allen Bradley VPL series,etc.
Delta Electronics ECMA series,etc.
INOVANCE MS1 series,etc.
Kinco SMC series,etc.
LS ELECTRIC APM series,etc.
Bosch Rexroth MSM series,etc.

Motor Power, Reduction Ratio, and Backlash Precision

Series Power Reduction Ratio Backlash Precision
AG3 (parallel shaft) 100W to 750/2000W 1/5 to 1/200 Low backlash
AH2 (right angle shaft) 100W to 750/2000W 1/5 to 1/240 Low backlash
AF3
(concentric hollow shaft/concentric solid shaft)
100W to 750W/1000W/2000W 1/10 to 1/180 1 minute/3 minutes
100W to 750/2000W 1/10 to 1/240 Low backlash
