Product specifications
High torque and wide range of reduction ratios
3Frame Sizes

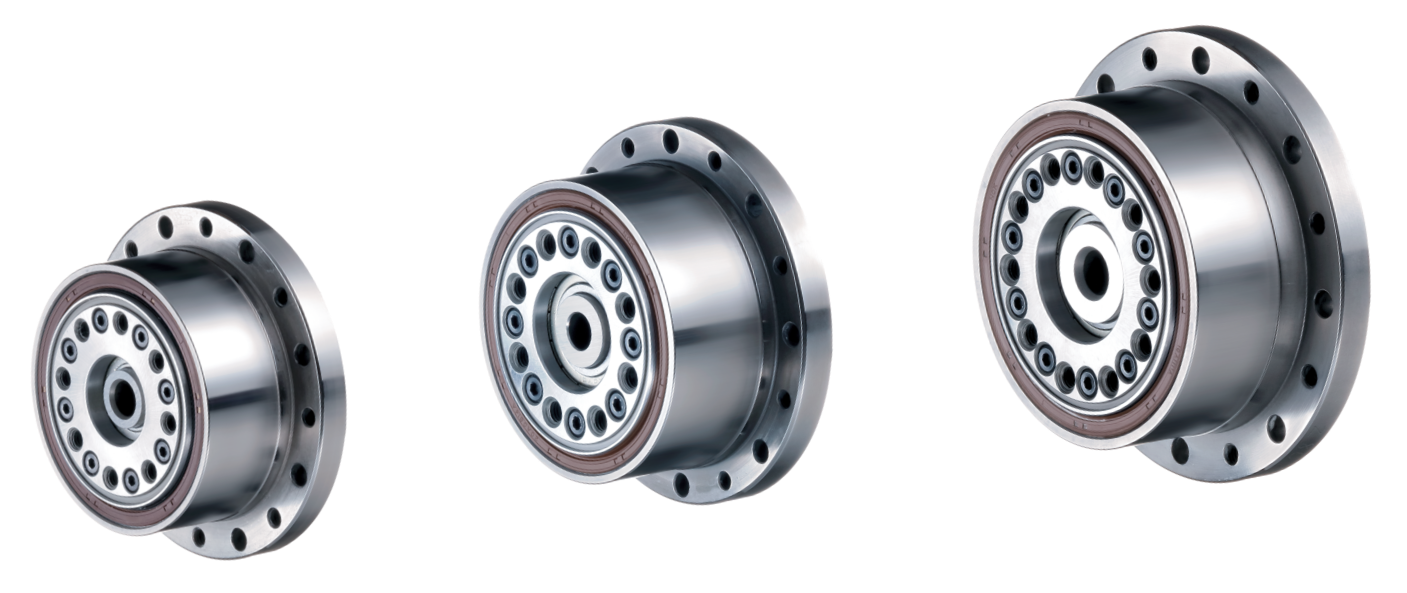

OD: 73mm / 79mm / 93mm
6stage Reduction
1/19・1/29・1/49・1/79・1/99・1/119
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.

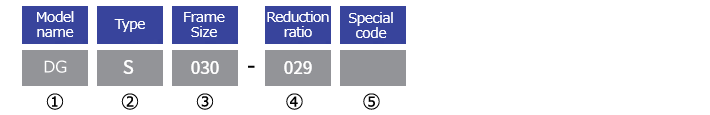

Type Codes
| ①Model name | DG Series |
|---|---|
| ②Type | S: Solid |
| ③Frame Size* | 010：11N・m |
| 030：31N・ｍ | |
| 050：52N・m | |
| ④Reduction ratio | 019：1/19 |
| 029：1/29 | |
| 049：1/49 | |
| 079：1/79 | |
| 099：1/99 | |
| 119:1/119* | |
| ⑤Special code | For special specifications, additional identification symbols will be used. |
* Each Frame Size represents their corresponding Rated Torque
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.
Selection Process
The high stiffness reducer can be selected as follows. Download the catalog for details.
1
Calculation of average load torque on output shaft side in terms of usage
2
-1
Calculation of average output RPM
2
-2
Deciding on reduction ratio
2
-3
Calculation of average input RPM
2
-4
Calculation of maximum input RPM
3
Confirmation of whether the usage conditions meet the Performance Table values
4
Calculation of reducer Life time
PDF catalog
Click the cover to go to the download page.
Note that your personal information will be required.
