Product information
Easily to be coupled with servo motors
3Frame Sizes
OD: 73mm / 79mm / 93mm
6stage Reduction
1/19・1/29・1/49・1/79・1/99・1/119
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.
Type Codes
| ①Model Name | DG Series |
|---|---|
| ②Type | S: Solid |
| ③Frame Size*1 | 010：11N・m |
| 030：31N・ｍ | |
| 050：52N・m | |

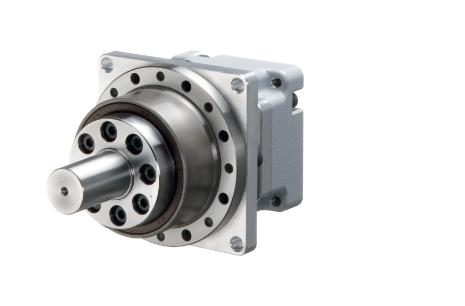

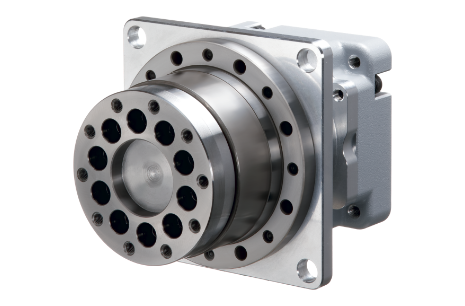

| ④Output shaft type | F: Flange shaft |
| J: Straight shaft (No key, no shaft end tapping) | |
| ⑤Reduction Ratio | 019：1/19 |
| 029：1/29 | |
| 049：1/49 | |
| 079：1/79 | |
| 099：1/99 | |
| 119：1/119*2 | |
| ⑥Precision | N: Standard Specification |
| ⑦Flange Type for Motor Mounting *3 | HS1, KS2 etc. |
| ⑧Option 1 | N: Standard Specification |
| ⑨Blank: Standard Specification | N: Standard Specification |
| X: Optional Specification | |
| ⑩Specification Code | U1: Addition of output shaft key and shaft end tapping |
*1 The rated torque for a 1/49 reduction ratio is shown for each frame size.
*2 The 1/119 reduction ratio is only available on frame sizes 030 and 050.
*3 Please contact us for details.
