Offering optimal reducers compatible with the evolution of servo motors.

Product lineup

Enhanced points

Selection Tool

Product lineup

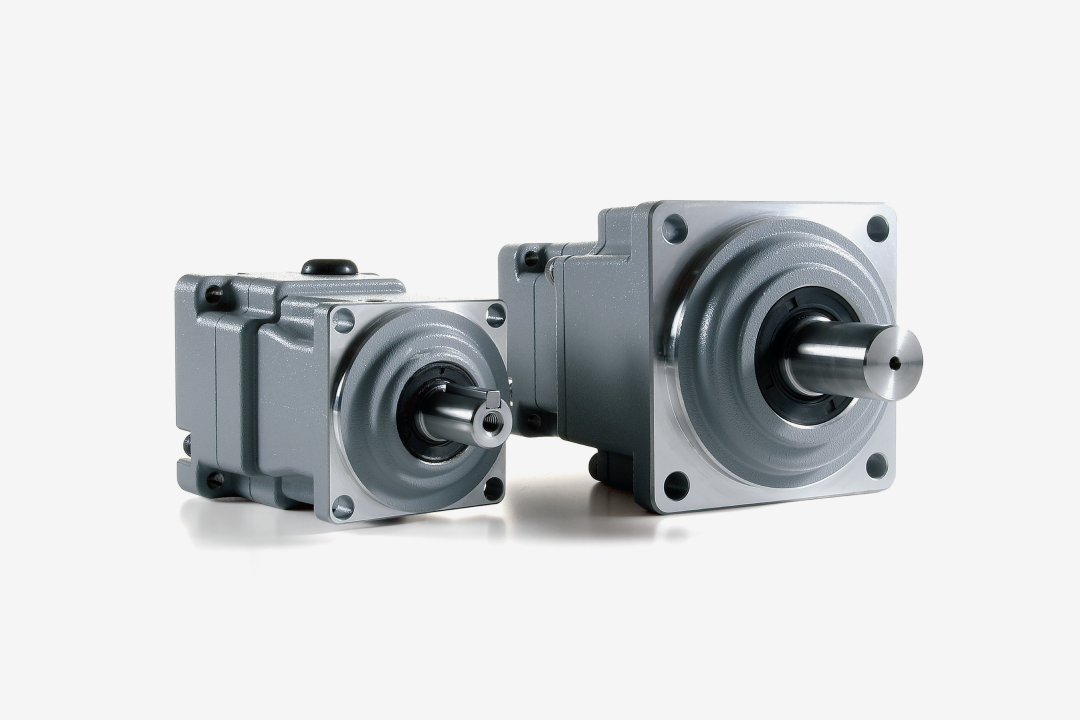

High Precision Reducers for Servo Motors

Parallel Shaft/Planetary (APG)

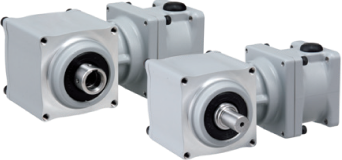

Right Angle Hollow Bore/Right Angle Shaft (AFC)
Low Backlash Specification (AG3,AH2,AF3)

Power Class: 100 W to 3000 W

Reduction Ratio: 1/3 to 1/240

A wide range of power classes and reduction ratios to accommodate various applications.

Supporting motor power ranging from 100 to 3000 W and instantaneous input rotation speed of up to 7000 r/min (APG type) are suitable for various industries, including the food industry (conveyors, packaging machines, etc.), the logistics industry (transport machines, etc.), and the manufacturing industry (printers, cutters, etc.), among others.

Examples of mountable servo motors manufacturers ：[Japan] SANYO DENKI, Mitsubishi Electric, YASKAWA Electric, KEYENCE, FANUC, etc. [International] Allen Bradley, Kinco, etc.

Click here for details

Examples of application (APG type)

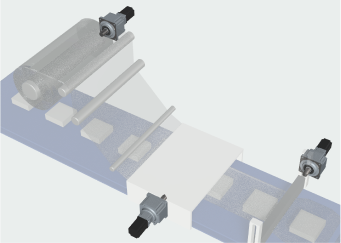

Horizontal pillow packaging machine (roll feeding/conveyor transport)

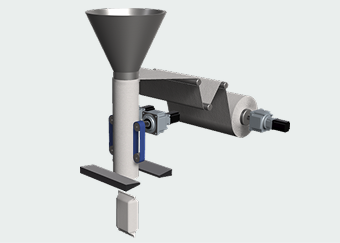

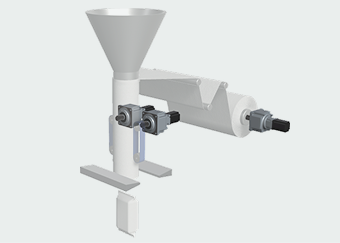

Vertical pillow packaging (roll feeding/conveyor transport)

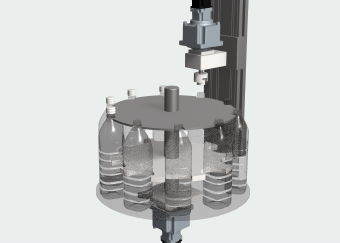

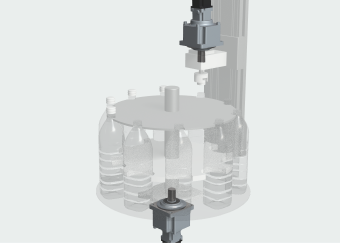

Liquid filling machine (bottle alignment/cap tightening)

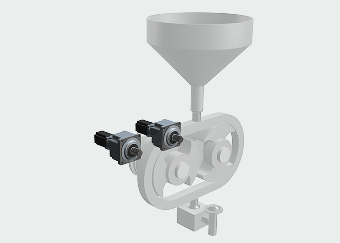

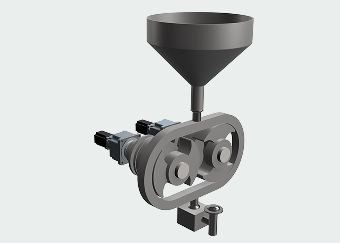

Liquid filling machine (rotary pump)

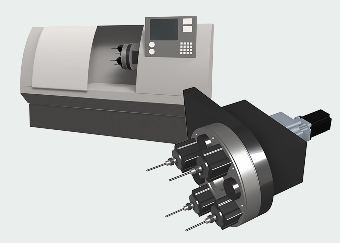

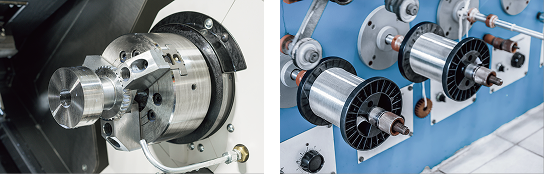

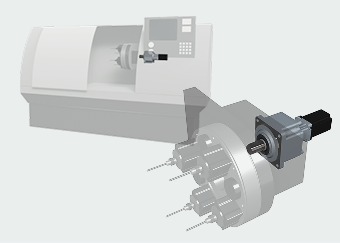

Machine tool (turret head rotation on a automatic lathe)

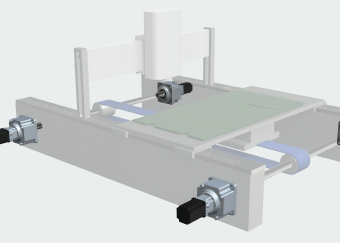

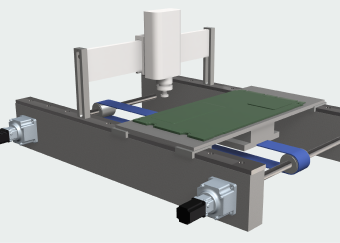

PC printing machine (circuit board automatic transport)

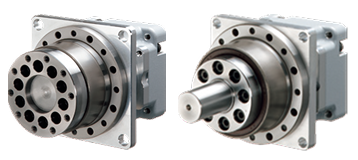

High Stiffness Reducers

Gear Head Type

Power Class: 100 W to 750 W

Reduction Ratio: 1/19 to 1/119

Achieving high precision drive with high stiffness and high torque.

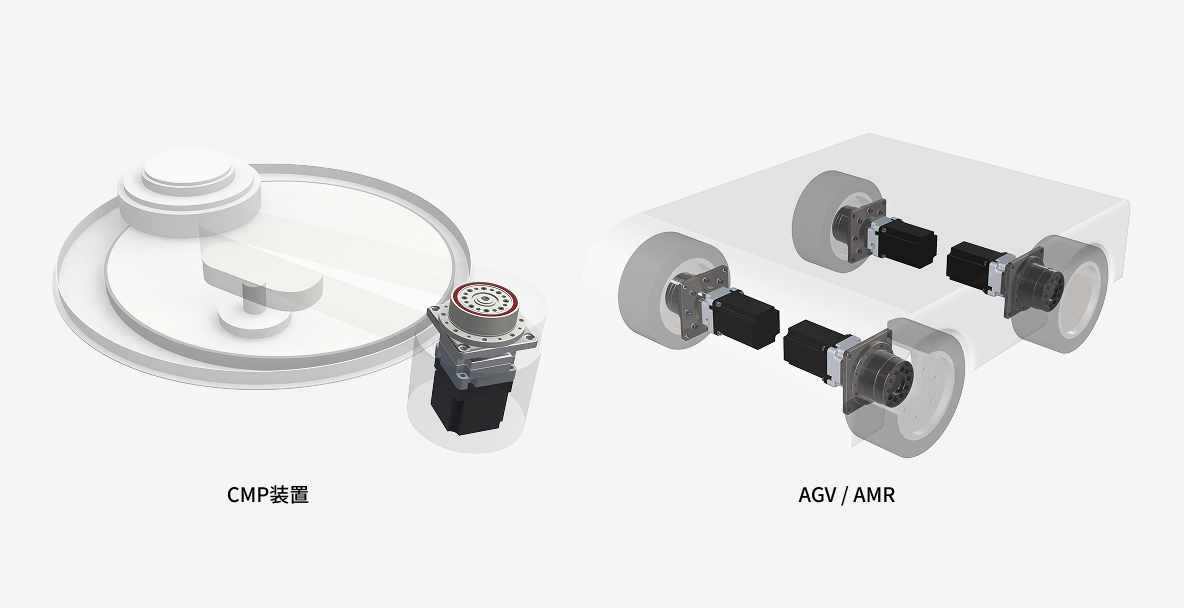

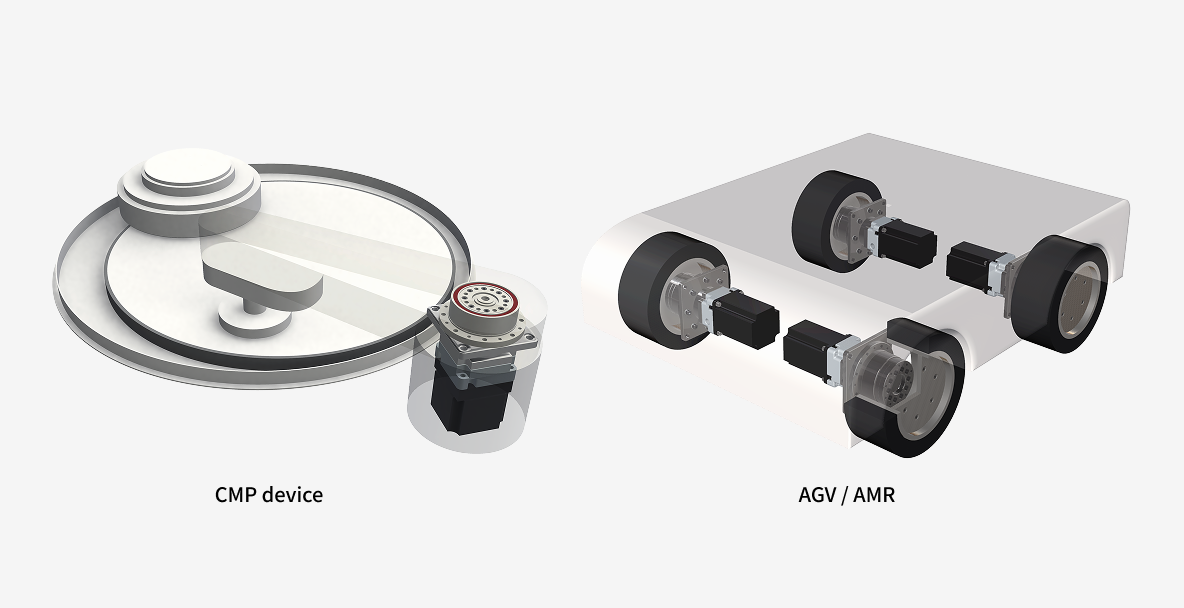

Making precision equipment such as machine tools, semiconductor manufacturing equipment, and industrial robots powerful and speedy.
In addition, the compact design allows flexible mounting to devices and configurations.
Optimal for applications requiring high-precision performance.

Examples of mountable servo motors manufacturers ：[Japan] SANYO DENKI, Mitsubishi Electric, YASKAWA Electric, KEYENCE, FANUC, etc. [International] Allen Bradley, Kinco, etc.

Click here for details

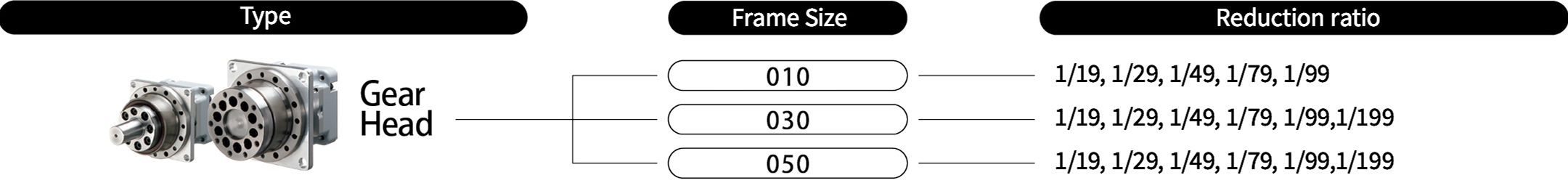

Model configuration table

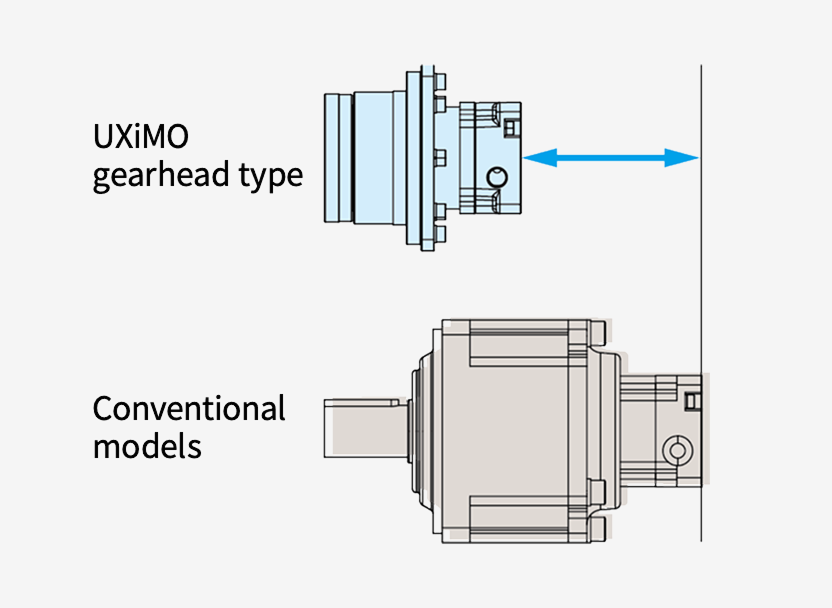

Comparison with conventional servo models

Application example

Examples of application (gearhead type)

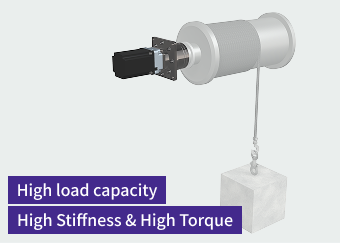

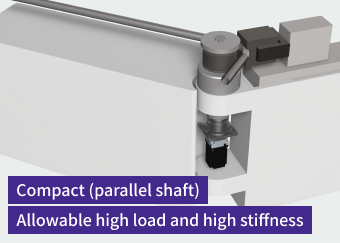

Hoist device

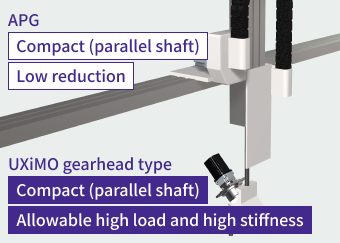

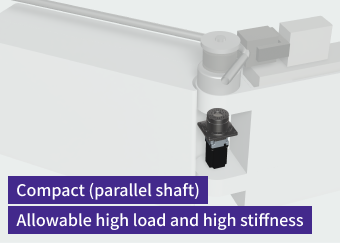

Loading device
(X, Y, Θ axes)

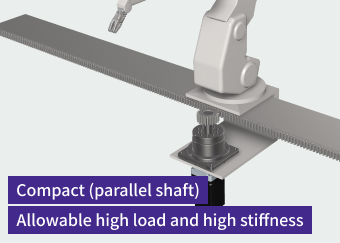

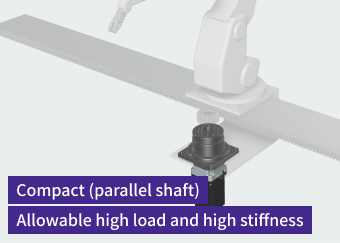

Robot transport system
(rack and pinion drive)

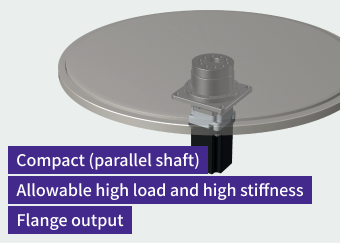

Turntable (rotation axes)
Molding machine (bender)

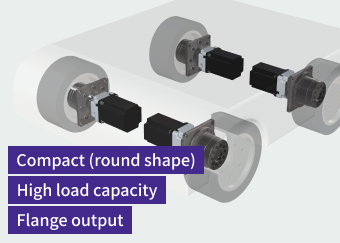

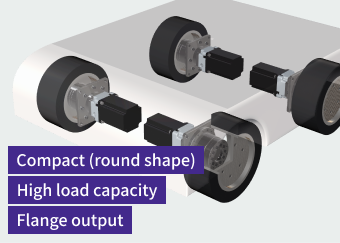

AGV / AMR (wheel drive unit)

Enhanced points

Seeking Speed and Torque at the same time.

The speed and performance of servo motors is improving year by year.
Servo Reducer APG type has evolved to obtain full-performance of the servo motors.
This has achieved "High Speed", "High Torque", "High Efficiency", reaching a high-level of performance in the industry.
It contributes to takt improvement particularly in food packaging machines and other production equipment, make it possible to dramatically increase production output.

Allowable maximum

7000r/min

Supporting instantaneous input rotational speed of 7,000 r/min contributes to speed increases and takt improvement.

Allowable maximum rate

350%

Allowable peak torque of startup/stop, maximum up to 350 % supported.

Maximum point increase

10point

Compared with our current models, transmission efficiency is increased by 4 points on average and 10 points at maximum.

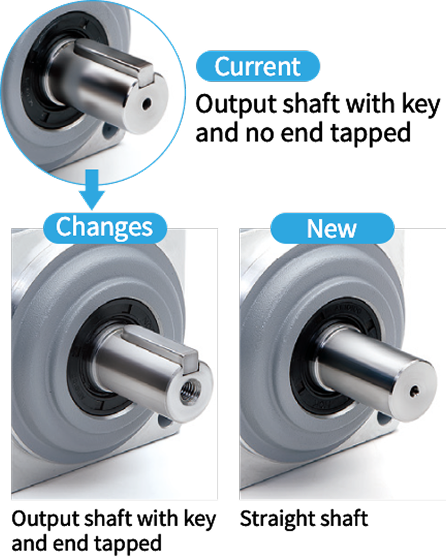

The output shaft has also evolved through shape changes and additions.

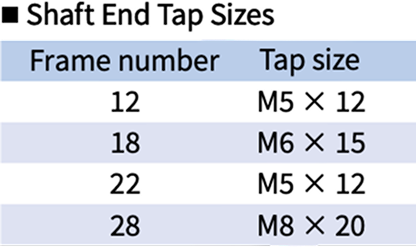

We changed the standard specifications to include shaft end tapped hole and added the much-requested straight shaft to the standard lineup.

Add applicable motor power

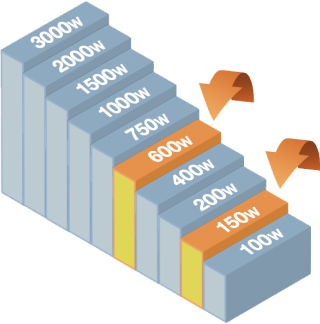

New models corresponding to 150 W and 600 W has joined a lineup

Compact design, Versatile reducers for many applications.

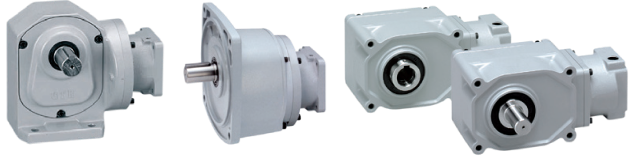

The right angle shaft type of the high precision reducer can be mounted perpendicularly to the device, so that the motor does not protrude from the device, which results in space saving design of your device.

The range of servo motor mounting flanges is expanding.

Supporting several major servo motors in Japan and international.
The range of servo motor manufacturers and models is expanding!

Examples of servo motor manufacturers in Japan

Manufacturer	Examples of product part number
OMRON	R88M-1M and others
KEYENCE	SV2 and others
SANYO DENKI	R2 and others
Panasonic	MHMF
FANUC	αiF-B and others
Mitsubishi Electric	HG-SR and others
YASKAWA Electric	SGMXJ and others

Examples of servo motor manufacturers other than Japan

Manufacturer	Examples of product part number
ABB	BSM and others
Allen Bradley	VPL and others
Delta Electronics	ECMA and others
INOVANCE	MS1
Kinco	G2
LS ELECTRIC	APMC and others

Motor Matching / Motor Power Design List

Selection Tool

Select products, search for mountable servo motors, and download files such as CAD data from our website.

Find your reducer by searching for specific application or part number.
Download CAD data, instruction manuals, and catalogs by filtering conditions and entering usage condition values.

Click here if you have decided on the servo motor to be installed.
Reducer configurator by selecting manufacturer and specifications of the servo motor.

Click here to check servo motor mounting dimensions.
Select an applicable reducer by inputting dimensions.

Click here to filter reducers based on the specifications.
Filtering reducers based on reduction ratio or shaft types.

Click here if you have decided on the devices to be installed.
Select the applicable reducer by entering the device’s use conditions, such as speed and workpiece weight, in numerical form.
